Rotary Stroke Pneumatic Actuator for Ball/Butterfly Valve Control

Rotary Stroke Pneumatic Actuator for Ball/Butterfly Valve Control

RT(C)-Series Pneumatic Actuator Cylinder Ø 32, Ø 40, Ø 52, Ø 63, Ø 75, Ø 83, Ø 92, Ø 105, Ø 125, Ø 140, Ø160, Ø190, Ø210
Send to us
Basic Info.
Model NO. RT-Series/C-Series
Stroke Type Rotary
Shaft Hole Type Double Square/Double D/Keyway
Supplier Type Manufacturer/Factory
Conection Type G/NPT/BSPP
Working Temperature -40~+80/-20~+80/-20~+150
Color Grey/Blue/Black/Customized
Action Type Double Acting/Single Acting
Output Torque 3nm~13024nm
Cylinder Size 32mm~400mm
Transport Package Carton or Wooden Box
Specification CE, ATEX, SIL, ISO9001
Trademark ALPHA
Origin Wuxi Jiangsu China
HS Code 84123900
Production Capacity 300000 PCS/Year
Product Description
RT(C)-Series Pneumatic Actuator
  • ASTM 6005 die cast aluminum alloy cylinder blocks can be hard oxidized, epoxy resin sprayed (blue, orange, yellow, etc. as required), PTFE coated, or nickel plated to meet different requirements.
  • Nickel plated alloy steel, high-precision integrated output shaft simultaneously comply with NAMUR, ISO5211, DIN3337 standards. Sizes and stainless steel materials can be customized according to customer requirements.
  • Medium used: compressed air, non corrosive gas, and oil;
  • Air supply pressure: 2.5~8 bar
  • Stroke adjustment: The piston has an adjustable range of ± 5 degrees at both ends;
  • Lubrication: Under normal working conditions, there is no need to add lubricant;
  • Installation: Suitable for indoor or outdoor installation;
  • Maximum operating pressure: Input air pressure shall not exceed 10 bar.
  • Operating temperature:Standard type (using nitrile rubber O-ring): -20°C to+80° CLow temperature type (using low temperature nitrile rubber O-ring): - 40 ° C~+80 ° CHigh temperature type (using fluororubber O-ring): - 15°C to+150 ° C

Cylinder
Ø 32, Ø 40, Ø 52, Ø 63, Ø 75, Ø 83, Ø 92, Ø 105, Ø 125, Ø 140, Ø160, Ø190, Ø210, Ø 240, Ø 270, Ø 300, Ø 350, Ø 400
Output Torque
Action Type Minimum Torque Maximum Torque
Double Acting(DA)3Nm13024Nm
Single Acting(SR)4.3Nm4199Nm

Product Catalog
(1)Specification
(2)Material
(3)Construction

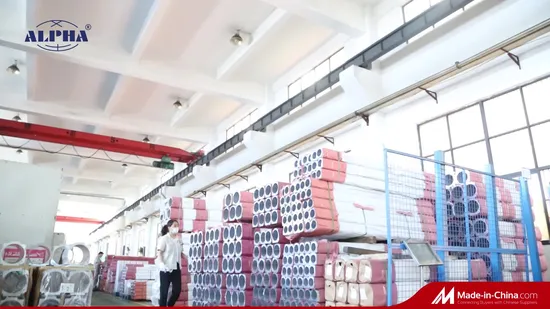

(4)Production
(5)Certification
(6)Pictures of product
(7)Company Profile
(8)Working Condition
