Butterfly Valve for Paper Pulp Chemical Industrial Power Utilities Petrochemical Sewage Water Supply Ship Building Food Beverage Fire Protection

Basic Info.

Model NO.	Newton-1
Work Pressure	Low Pressure (Pn<1.6mpa)
Working Temperature	Normal Temperature (-40°C<T<120°C)
Material of Seal Surface	Soft Sealed
Valve Body	Casting
Standard	API609 BS5155 ISO5752 JIS7480
Application	Industrial Usage, Water Industrial Usage, Household Usage
Transport Package	Plywood Cases
Specification	DN25-DN2000
Trademark	Newton
Origin	China
HS Code	8481804090
Production Capacity	10000000 Sets/Year

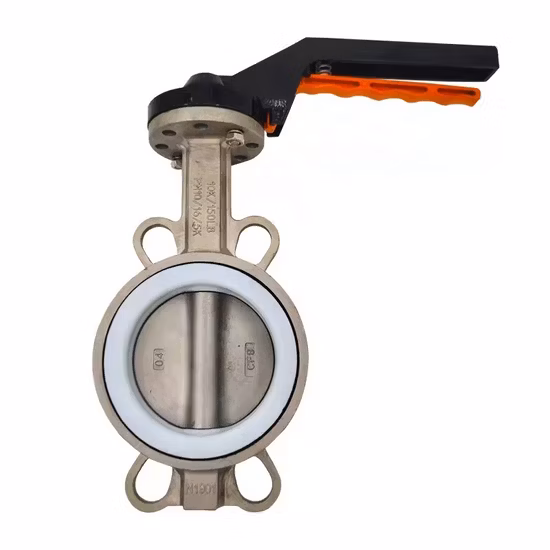

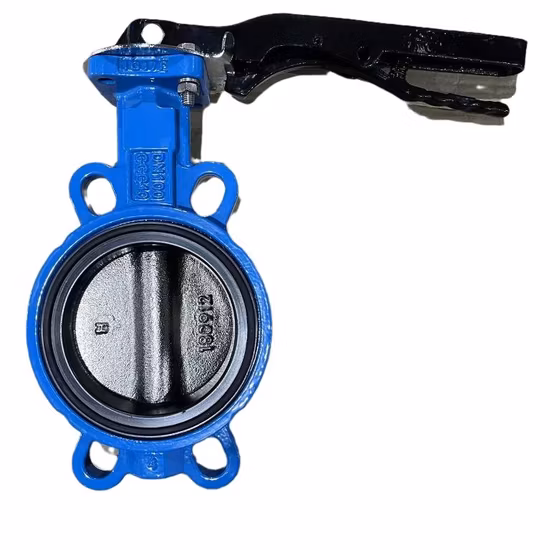

Product Description

Butterfly Valve for Paper Pulp Chemical Industrial Power Utilities Petrochemical Sewage Water Supply Ship Building

Type	Wafer/Lug/Flanged
Face to Face	API609
Flange	JIS5K/10K/16K, PN6/PN10/PN16, 150LB
Mounting Flange	ISO5211
Working Pressure	PN10/PN16
Application	Water works, Public facilities, Building Industry, Petroleum, Chemical, Steel, Metallurgy, Paper Making Industry, Foods, Beverage

No.	Part	Material
1	Body	DI/WCB/SS/AL Alloy/AL Bronze
2	Seat	NBR, EPDM, PTFE, VITON
3	Shaft	SS416, 304, 431, 316, Monel, Duplex Steel
4	Disc	DI+Ni, CF8, CF8M, 2507, coated Nylon11
5	Bushing	PTFE
6	O Ring	NBR
